Description

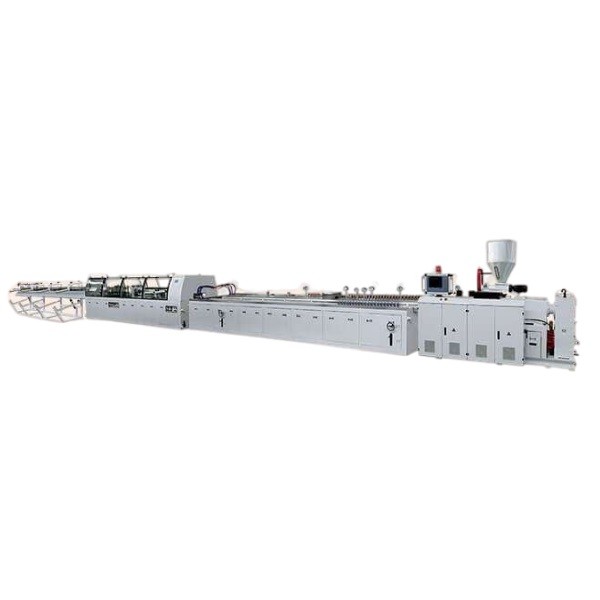

YF series PVC profile production line is mainly used to produce PVC door
and window profile, wide door panel, window sill and multi hole cable pipes ( 4
holes, 6 holes, 9 holes, etc). This kind of production line can adopt different
kinds of extruders and moulds according to different profiles and be equipped
with corresponding vacuum calibration unit, haul-off, cutting unit, tilting
unit, etc.
The haul-off adopts special rise and fall technology which ensures stable
working and high drawing force. The vacuum calibration unit adopts special
eddy-increasing cooling system to satisfy cooling and high-speed extrusion.
Cutter moving speed should be synchronous with haul-off speed. All the
operation was controlled by PLC, with professional design, stable operation,
fixed-scale cutting and equipped with dust-recycled device. Calibration unit
has the specification of 4m, 6m, 8m, 11m etc according to different moulds.
|
Main Extruder |
SJZ55/110 |
SJZ65/132 |
SJZ80/156 |
SJZ92/188 |
||
|
Motor Power(kw) |
22 |
37 |
55 |
110 |
||
|
Down-stream Equipment |
YF240S |
YF240A |
YF300 |
YF600 |
YF900 |
YF1200 |
|
Product Width(mm) |
Max.240 |
Max.240 |
Max.300 |
Max.600 |
Max.900 |
Max.1200 |
|
Vacuum Pump(kw) |
2x5.5kw |
4x5.5kw |
4x5.5kw |
4x5.5kw |
1x7.7kw 2x11kw |
2x7.5kw 2x11kw |
|
Water Pump(kw) |
1.5 |
4 |
4 |
7.5 |
7.5 |
7.5 |
|
Haul-off Speed |
0.5-5 |
0.5-5 |
0.5-5 |
0.5-5 |
0.5-5 |
0.5-5 |
|
Down-stream Equipment Power |
22 |
35 |
35 |
44 |
51.5 |
62 |
|
Capacity(kg/h) |
100 |
220 |
220 |
350 |
350 |
750 |
